define own color pallettee (replicatd R color pallette example)


You can get hexadecimal code for terrain.colors by typing the following in R:

> terrain.colors(6)
> t(col2rgb(terrain.colors(6)))
     red green blue
[1,]   0   166    0
[2,]  99   198    0
[3,] 230   230    0
[4,] 234   182   78
[5,] 238   185  159
[6,] 242   242  242

You can pick the color from different sources, even from nature or based on your own choice !

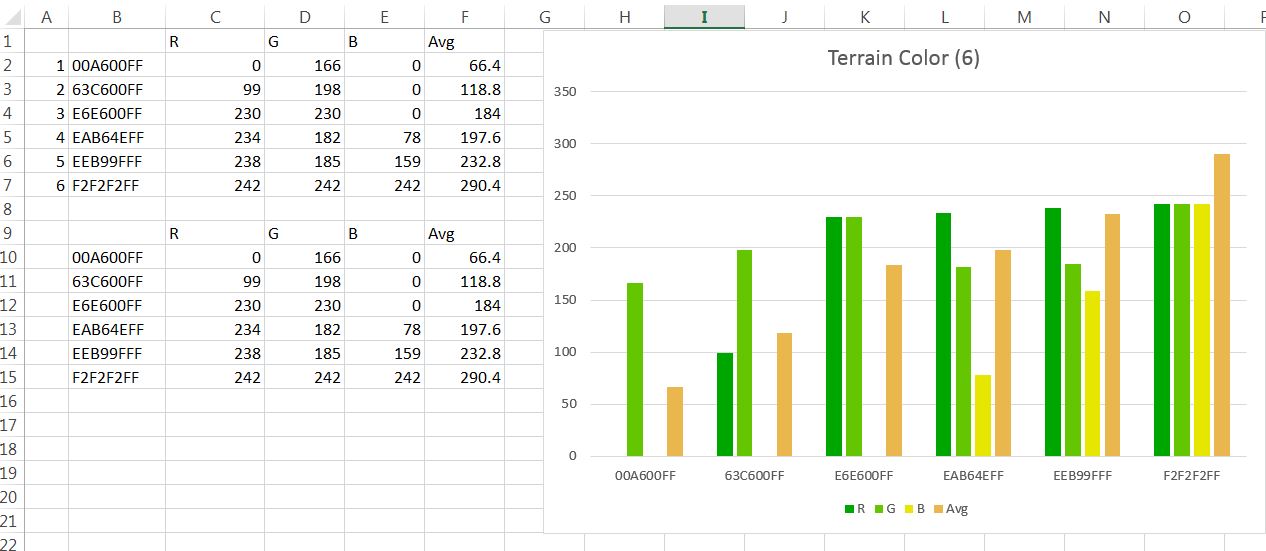

Formula:

For R column and row 2:
=HEX2DEC(LEFT(A2,2))

For G column and row 2:
=HEX2DEC(MID(A2, 3,2))

For B column and row 2:
=HEX2DEC(MID(A2, 5,2))


You can add color one by one, up to 6.






Plot in R:
barplot(seq(1:6), col=terrain.colors(6))
More color to practice:
> heat.colors(6)
[1] "#FF0000FF" "#FF4000FF" "#FF8000FF" "#FFBF00FF" "#FFFF00FF" "#FFFF80FF"
> t(col2rgb(heat.colors(6)))
     red green blue
[1,] 255     0    0
[2,] 255    64    0
[3,] 255   128    0
[4,] 255   191    0
[5,] 255   255    0
[6,] 255   255  128

> t(col2rgb(topo.colors(6)))
     red green blue
[1,]  76     0  255
[2,]   0   229  255
[3,]   0   255   77
[4,] 230   255    0
[5,] 255   255    0
[6,] 255   224  179
> t(col2rgb(cm.colors(6)))
     red green blue
[1,] 128   255  255
[2,] 170   255  255
[3,] 213   255  255
[4,] 255   213  255
[5,] 255   170  255
[6,] 255   128  255

> t(col2rgb(rainbow(6)))
     red green blue
[1,] 255     0    0
[2,] 255   255    0
[3,]   0   255    0
[4,]   0   255  255
[5,]   0     0  255
[6,] 255     0  255
More list of favorate colors:

R G B
aquamarine4 #458B74 69 139 116
darkolivegreen #556B2F 85 107 47
darkolivegreen4 #6E8B3D 110 139 61
darkgreen #006400 0 100 0
darkorchid4 #68228B 104 34 139
cadetblue #5F9EA0 95 158 160
cadetblue4 #53868B 83 134 139
burlywood4 #8B7355 139 115 85
chartreuse4 #458B00 69 139 0
aliceblue #F0F8FF 240 248 255
deepskyblue4 #00688B 0 104 139
forestgreen #228B22 34 139 34
khaki4 #8B864E 139 134 78
lightcoral #F08080 240 128 128
mediumaquamarine #66CDAA 102 205 170
lightgreen #90EE90 144 238 144
mediumorchid4 #7A378B 122 55 139
midnightblue #191970 25 25 112
lightseagreen #20B2AA 32 178 170
lightsalmon4 #8B5742 139 87 66
steelblue4 #36648B 54 100 139
tan4 #8B5A2B 139 90 43
yellowgreen #9ACD32 154 205 50
slategrey #708090 112 128 144

Due to presence of # and 6 digit code, the formula for R, G, B calculated is slightly modified.

For R:

=HEX2DEC(MID(C2,2,2))

For G:
=HEX2DEC(MID(C2, 4,2))

For R:
=HEX2DEC(MID(C2, 6,2))
